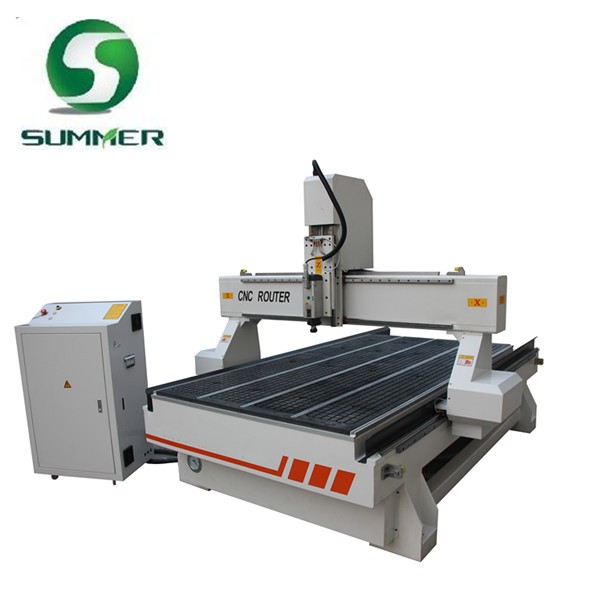

SM1325 CNC Router
Applicable industry:
wooden industry:
Sheet plane, three-dimensional wave board processing, screen, craft fan window processing,cabinet doors, solid wood door, craft door, paint-free door carving,cutting,engraving,drilling and other processing.
Other industry:
Building model,wooden model,wooden aviation model, propeller, car foam mold,violin,erhu and other instruments three-dimensional surface,shape cutting and surface pattern carved musical instrument,calligraphy plaque,carved frame.
Technical Parameter:
NO. | Description | Parameter |
1 | Table size | 1480*3000mm |
2 | X,Y working area | 1300*2500mm |
3 | Z working area | 200mm |
4 | Working accuracy | 0.05mm |
5 | Repositioning accuracy | 0.05mm |
6 | Frame Structure | Whole Steel structure |
7 | Table Type | Vacuum table or T-Slot table |
8 | Max. traveling speed | 50000mm/min |
9 | Max. working speed | 25000mm/min |
10 | Interface | USB |
11 | Command | G code*.u00*.mmg*. plt |
12 | Surroundings for software | windows98/2000/xp |
13 | Working voltage | 3PH AC380V/50HZ |
14 | Spindle power | 3KW Water cooled/3.5KW air cooled |
15 | Spindle rotating speed | 0-24000rpm |
16 | Drive Motor | Stepper |
17 | Gross weight | 1800kgs |
18 | Packing size | 320*210*190cm |
