Features
1. The product is a normal model of heavy stone flat engraving machine.
2. Machine bed adopt joist steel that improve the load-bearing capacity which can bear more than 2 tons.
3. The bed inside uses stainless steel that can greatly prolong the working life of the machine.
4. The machine uses the domestic and foreign high-end installation kit and the lathe bed gantry that made by machining center to ensure the machining accuracy of the machine.
5. The new three shaft waterproof and waterproof design, easy to remove, repair and maintenance.

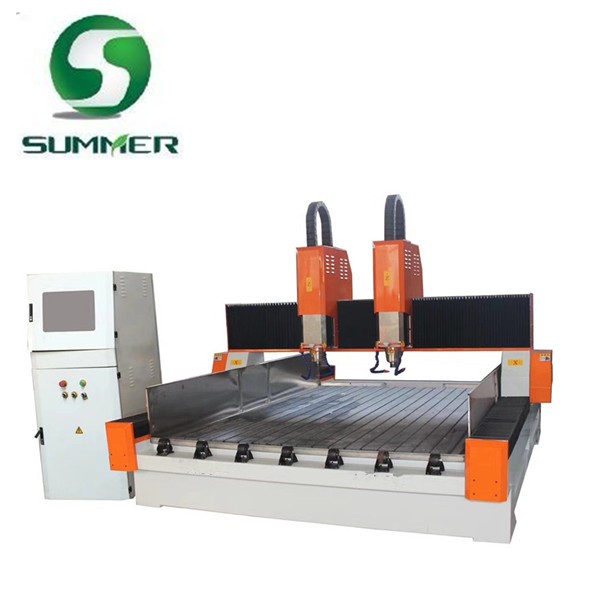

6. Multi head series stone carving machine is designed for large-scale producing same size products. We can made double head machine, three head machine, four head machine as customers request that to increase producing efficiency.
Technical Parameters:
Series | SM1530 | SM2030 |
Working area(mm) | 1500x3000x400 | 2000x3000x400 |
Transportation | X /Y axis is rack gear, Z axis is screw | |
Spindle power | 5.5KW*2 | |
Control system | NC studio/DSP | |
Command Language | G-code, HPGL 3D | |
Driver | Step motor/Servo motor | |
Machine Power | 12KW | |
Working Voltage | AC380±10%,50HZ | |
Machine Size(mm) | 3600x2100x1800 | 4100x2800x1800 |
Weight | 2000KGS | 2500KGS |
Application:
Tombstone industry, ceramic tile industry, decoration industry etc. In the stone and glass, the machine can complete text carving, lines carving, reliefs carving, hollow carving and so on.
