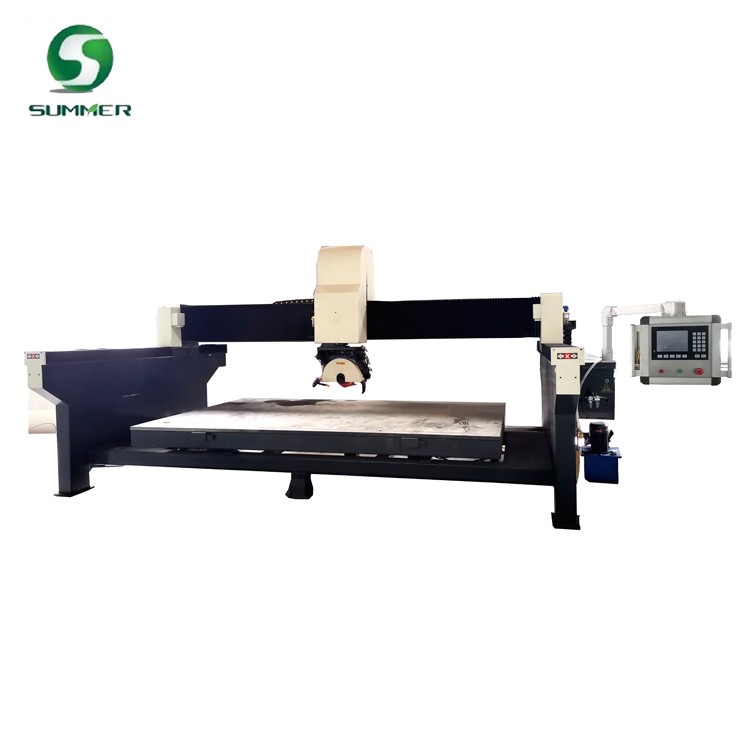

Features: Fully automatic five-axis infrared bridge cutting machine, multi-language conversion, table top processing can be done by one machine, X-Y-Z-A-B five-axis linkage, a wider range of applications, can realize cutting, chamfering, edging, grooving, drilling, circular arc Other special-shaped processing, simple operation and strong practicability. Processing material: Granite, marble, artificial stone, slab and other types of stone. Function: 1. The machine head can swing at any angle and can cut the plate at any angle and shape: horizontal cutting, longitudinal cutting, arc cutting, elliptical cutting, and round cutting. The machine can also be used for bump edging. 2. In addition to the cutting shape, it can also cut the large plate with 45° chamfering, opening the basin hole, stove hole, and diagonal cutting 3. The platform can be turned by 85°, which is convenient for loading and unloading. 4. No complicated operations, just input data on the control system 5. Equipped with a grinding wheel device, which can polish the table hole and cutting surface | ||
Processing size | 3000*2000mm | |
Saw blade diameter | 350mm | |
Cutting thickness | 50mm | |
Control System | Superstar stone control system | |
Platform flap angle | 0-85° | |
Head rotation angle | 0-360° | |
Tilt angle of nose | 0 °or 45° | |
Cutting motor | 7.5kw/11kw | |
transfer method | X-Y-A axis gear drive, Z axis screw drive | |
Drive way | Ruiou 1.3kw servo motor and diver+2.2kw | |
Programmatically | Manual/Graphic import | |
Body weight | 3500KGS | |
Dimension | 6000*3000*2000 |
